Integrated
Motors
A motor with a controller or a driver, and an encoder, is
an integrated motor. Integrated motors save wiring
between the motor, controller and the control cabinet.
By minimizing the machine complexity and installation
efforts, the overall system cost is reduced. Their
minimal footprint makes the integrated motor-drives
ideal for modular machine architecture, saving plenty
of cabinet space.
A motor with a controller or a driver, and an encoder, is an integrated motor. Integrated motors save wiring between the motor, controller and the control cabinet. By minimizing the machine complexity and installation efforts, the overall system cost is reduced. Their minimal footprint makes the integrated motor-drives ideal for modular machine architecture, saving plenty of cabinet space.
STXI Integrated Motors
stepIM
Integrated Closed Loop Steppers
With a cost-effective design and superior closed
loop servo drive by Servotronix Motion Control,
the stepIM provides an efficient and economical
solution for applications that require the
performance of a servo at the price level of a
stepper. The stepIM significantly enhances the
performance of the stepper motors, when
compared to conventional open loop control.
The integrated electronics control the stepper
motor as a two phase BLDC motor,
implementing position servo loop, velocity loop,
DQ current control, as well as additional
algorithms. Closed loop commutation, by means
of an absolute singe-turn encoder, ensures
optimal torque utilization at any speed.
With a cost-effective design and superior closed loop servo drive by Servotronix Motion Control, the stepIM provides an efficient and economical solution for applications that require the erformance of a servo at the price level of a stepper. The stepIM significantly enhances the performance of the stepper motors, when compared to conventional open loop control. The integrated electronics control the stepper motor as a two phase BLDC motor, implementing position servo loop, velocity loop, DQ current control, as well as additional algorithms. Closed loop commutation, by means of an absolute singe-turn encoder, ensures optimal torque utilization at any speed.
TIM
New-Gen Integrated Motors

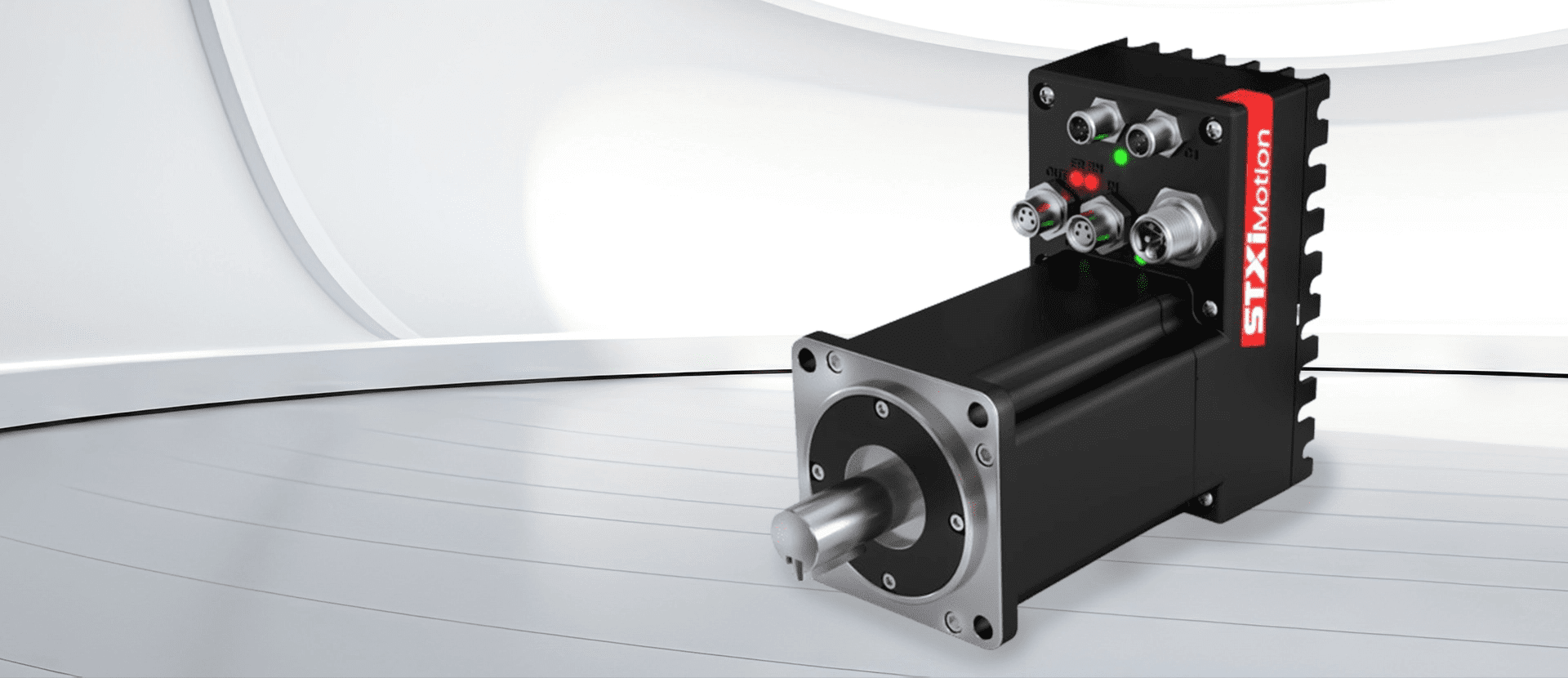

The TIM integrated servo motor is a cost
effective and flexible solution, ideal for
applications with limited control cabinet space
and a decentral machine architecture. The TIM,
with its high power density and compact size,
enables space-saving machine designs and
ultimately cabinet-less machines.
The TIM integrated servo motor is a cost effective and flexible solution, ideal for applications with limited control cabinet space and a decentral machine architecture. The TIM, with its high power density and compact size, enables space-saving machine designs and ultimately cabinet-less machines.
